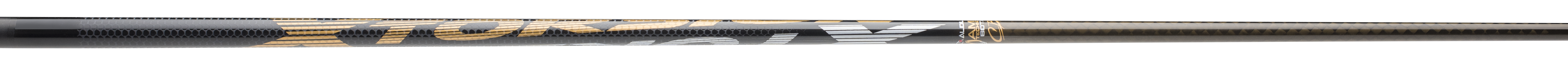

The ALDILA® XTORSION® Copper features a stiff tipped, Counter Balanced design along with a new and unique woven graphite material on the outer layer of the shaft at the tip-section. This Multi-Axial Material Bias Angle (MAMBA®) Technology places a high-tech material on the shaft in a +/- 45 degree fiber orientation. This unique use of a flat weave material on the exterior of the shaft provides significantly improved torsional stability to this counter weighted shaft in the lower half (tip-section) where the greatest percentage of twisting occurs during the swing and at impact.
ITEM DESCRIPTION FLEX LENGTH(in) WEIGHT(g) TIP O.D.(in) TIP LENGTH(in) BUTT O.D.(in) TORQUE(degrees) KICK PT. TIP TYPE TRIM CODE XTORSION™ Copper 50 R 46.0 56 0.335 3.0 0.610 4.8 MID/HIGH PARALLEL F XTORSION™ Copper 60 S 46.0 67 0.335 3.0 0.610 4.2 MID/HIGH PARALLEL F XTORSION™ Copper 70 X 46.0 70 0.335 3.0 0.615 3.3 MID/HIGH PARALLEL F XTORSION™ Copper 70 TX 46.0 70 0.335 3.0 0.615 2.9 MID/HIGH PARALLEL F
High Balance Point
By using innovative materials and creating slightly thicker walls toward the butt-end of the shaft we raised the balance point of the shaft which creates the potential for lighter swing weights, increased head-speed and distance.
Multi-Axial Material Bias Angle (MAMBA®) Technology
Multi-Axial Material Bias Angle (MAMBA®) Technology places a high-tech, flat weave material on the shaft’s lower half exterior, where the most twisting occurs during the swing and at impact. MAMBA® Technology improves torsional stability and spin control where it’s needed the most.
Driver Speed (mph)/Driver Carry (yds) 80/210 81-90/210-239 91-105/240-259 106+/260+ XTORSION® Copper 50 R XTORSION® Copper 60 S XTORSION® Copper 70 X/TX
Tip Trimming Information
Trim Code Procedure A Trim to length from butt end. B Tip Trim in 1/2" increments (3-PW). C Tip Trim in 1/2" increments (3W-7W). D Tip Trim Driver 2", 3W 2-1/2", 4W 3", 5W-7W 3-1/2". E Tip Trim 2", then 1/2" increments (3-PW). F No Tip Trim for Driver. Trim to length from butt end. Tip Trim Fairway Woods 1", then to length from butt end. G Tip Trim 2H-3H 0", 4H 1/2", 5H and below 1"
